Pneumatic Roller Support
Servo follow-up material support design, real-time control and adjustment of pipe height support, prevent pipe sagging, effectively solve the problem of pipe center deviation, and improve cutting accuracy.
  • Innovative Structural Design

    Unique industrial structure design, strong structural stability and high dynamic performance, greatly improve cutting production efficiency
Precise Gear Transmission
Fully automatic pneumatic chuck, precise gear transmission, transmission accuracy reaching 0.01mm. Powerful automatic centering function, the speed is 3 times that of the electric chuck, which is convenient and efficient. Pneumatic super strong clamping force, the heavy pipe is more firmly clamped, making cutting accurate and good quality.

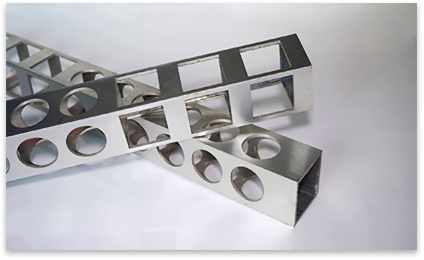

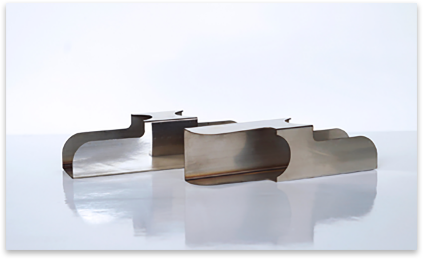

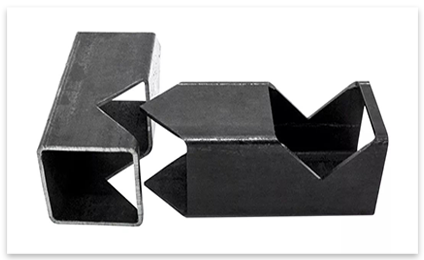

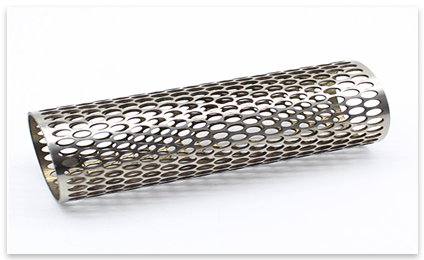

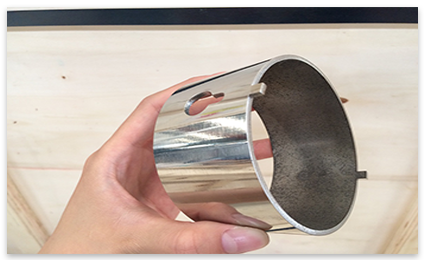

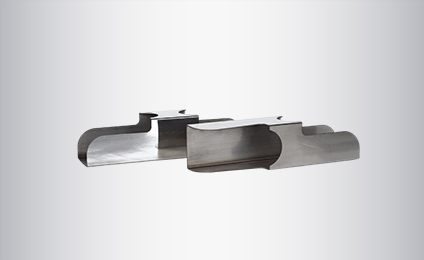

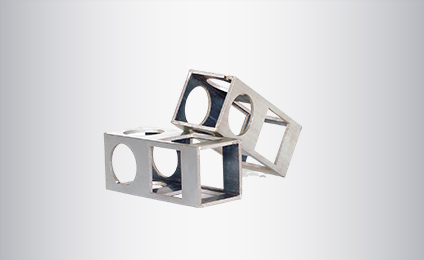

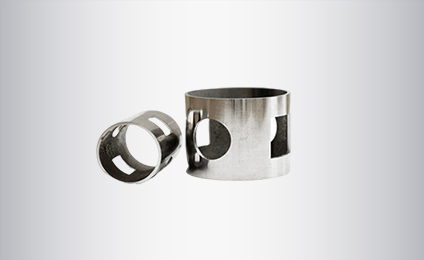

CUTTING SAMPLES
MACHINE PARAMETER

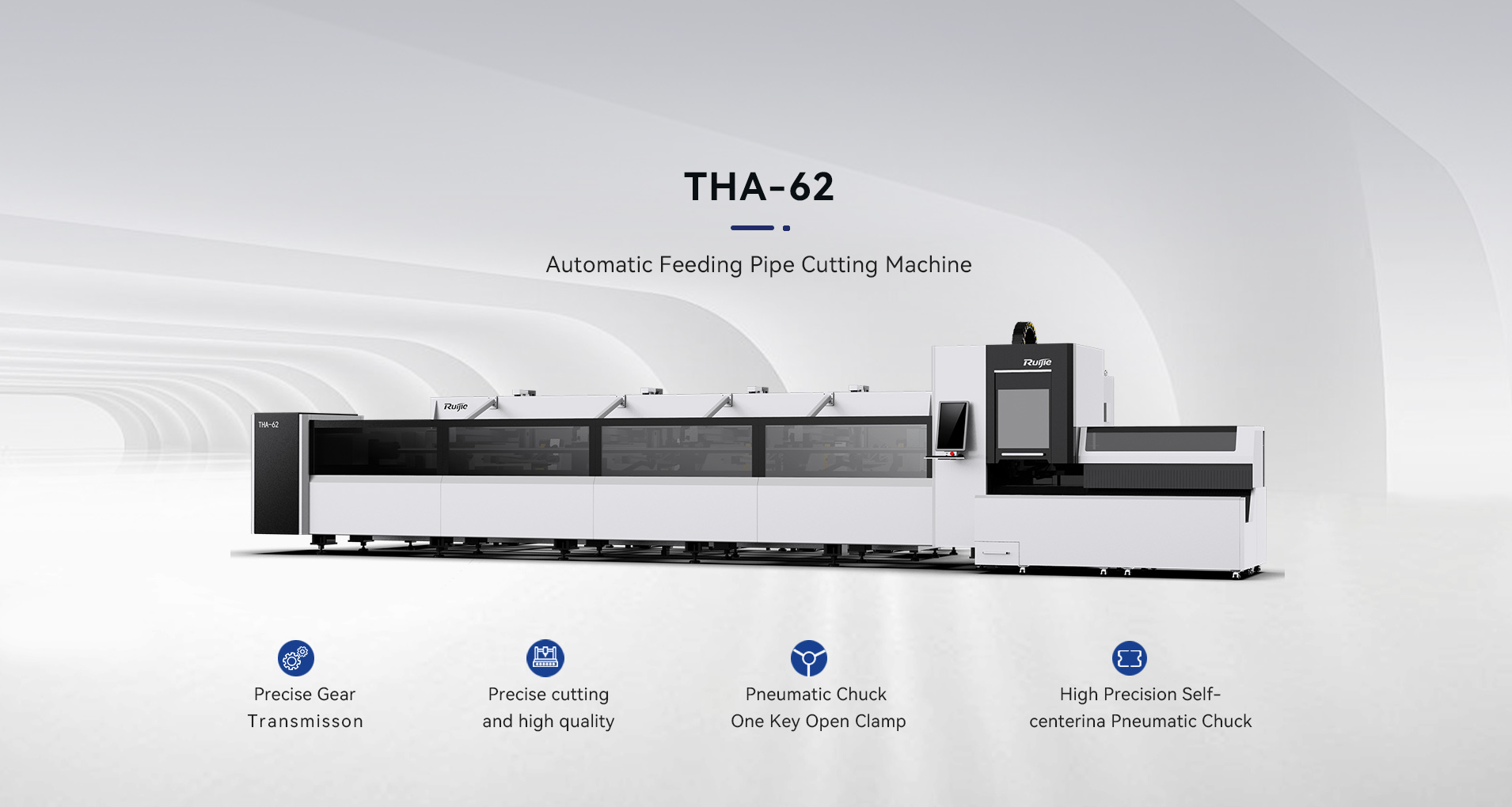

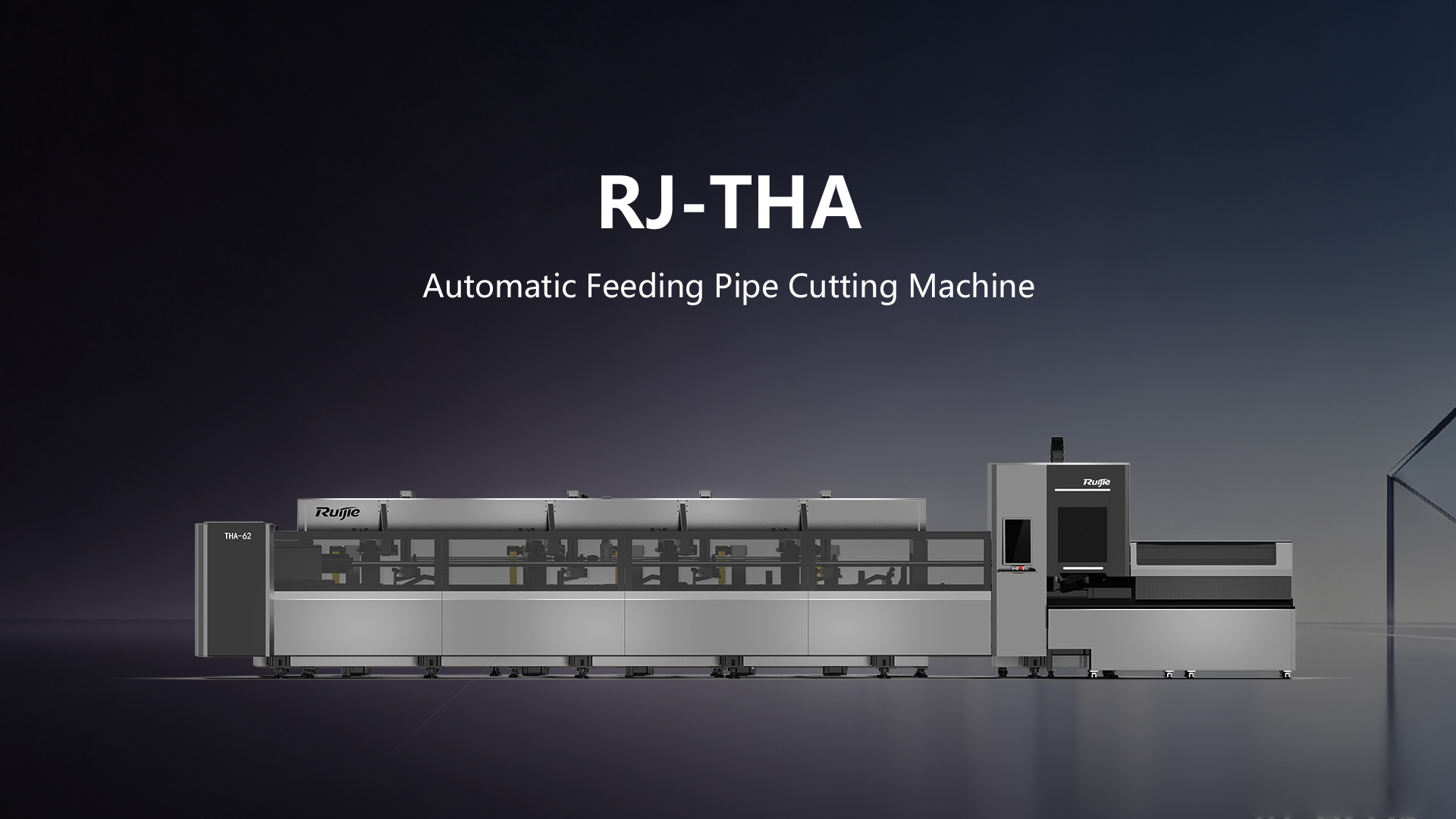

Machine Model THA-62
Laser Power 1000-6000w
Tube Size Range φ15-φ220mm □15-□155mm
Travel Speed 100m/min
Maximum clamping weight 240KG(According to chuck specification)
Repeat Positioning Accuracy ±0.02mm
