Precise Gear Transmission
Fully automatic pneumatic chuck, precise gear transmission, transmission accuracy reaching 0.01mm. Powerful automatic centering function, the speed is 3 times that of the electric chuck, which is convenient and efficient. Pneumatic super strong clamping force, the heavy pipe is more firmly clamped, making cutting accurate and good quality.
  • Pneumatic roller suppor

    Servo follow-up material support design, real-time control and adjustment of pipe height support, prevent pipe sagging, effectively solve the problem of pipe center deviation, and improve cutting accuracy.
Professional Pipe Bus System
The pipe cutting bus system supports automatic high-speed and high-precision cutting, which meets the cutting of special-shaped pipes such as round pipes, square pipes, and rectangular pipes.
Innovative Structural Design
Unique industrial structure design, strong structural stability, high dynamic performance, greatly improve the cutting efficiency
CUTTING SAMPLES
MECHINE PARAMETER

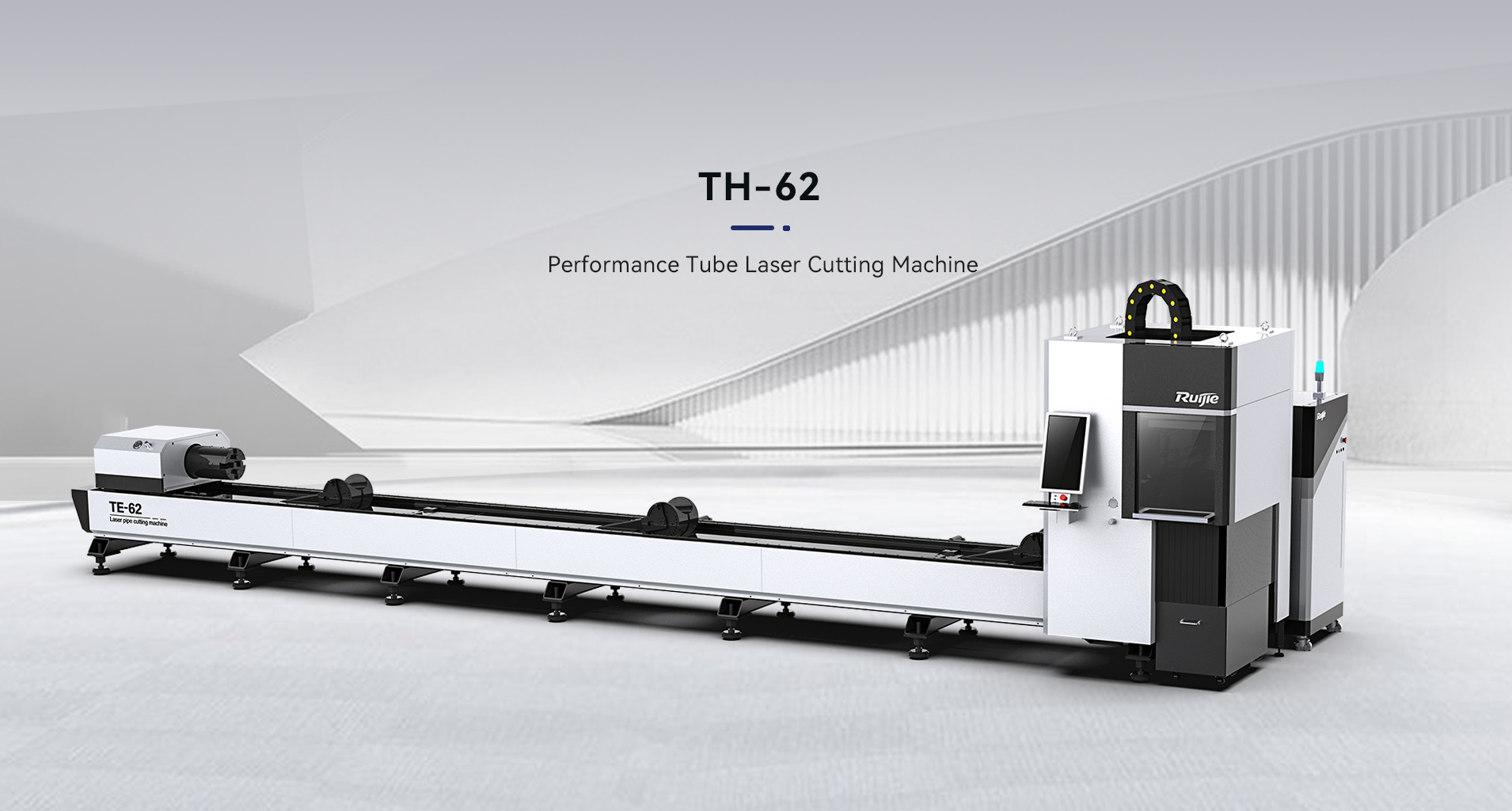

Machine Model TH-62
Laser Power 1000-6000w
Tube Size Range φ15-φ220mm □15-□155mm
Maximum clamping weight 240KG(According to chuck specification)
Repeat Positioning Accuracy ±0.02mm
Max. Chuck rotating speed 100r/min
